Sheaves with Bushings

Our bushings are made from a powdered metal process and then oil impregnated for self-lubrication.  We offer 10 different sizes of Sheaves with Bushings.  Choose the size that fits your application, and then click "Order".  Click here to review the many product applications.

SPECIFICATIONS CHART

Model No. Max
Cable
A B C D E F O Working
Load
Weight
Each
00158
Order
3/16"4.763 1"25.40 1 1/2"38.10 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 3/16"4.763 525 LBS238.136 kg .20 LB0.091 kg
00158-SS (Stainless)
Order
3/16"4.763 1"25.40 1 1/2"38.10 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 3/16"4.763 525 LBS238.136 kg .20 LB0.091 kg
00208
Order
3/16"4.763 1 1/2"38.10 2"50.80 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 3/16"4.763 600 LBS272.155 kg .30 LBS0.136 kg
00208-SS (Stainless)
Order
3/16"4.763 1 1/2"38.10 2"50.80 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 3/16"4.763 600 LBS272.155 kg .30 LBS0.136 kg
00258
Order
1/4"6.35 2"50.80 2 1/2"63.50 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 1/4"6.35 685 LBS310.711 kg .50 LBS0.227 kg
00258-SS (Stainless)
Order
1/4"6.35 2"50.80 2 1/2"63.50 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 1/4"6.35 685 LBS310.711 kg .50 LBS0.227 kg
00258-1/8
Order
1/8"3.175 2"50.80 2 1/2"63.50 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 1/8"3.175 685 LBS310.711 kg .50 LBS0.227 kg
00258-1/8-SS (Stainless)
Order
1/8"3.175 2"50.80 2 1/2"63.50 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 1/8"3.175 685 LBS310.711 kg .50 LBS0.227 kg
00308
Order
1/4"6.35 2 1/2"63.50 3"76.20 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 1/4"6.35 800 LBS362.874 kg .80 LBS0.363 kg
00308-SS (Stainless)
Order
1/4"6.35 2 1/2"63.50 3"76.20 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 1/4"6.35 800 LBS362.874 kg .80 LBS0.363 kg

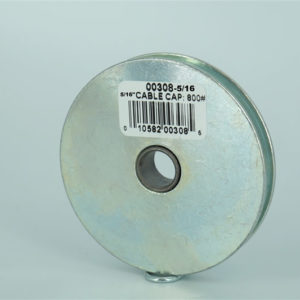

00308-5/16
Order
5/16"7.938 2 1/2"63.50 3"76.20 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 5/16"7.938 800 LBS362.874 kg .80 LBS0.363 kg
00308-5/16-SS (Stainless)
Order
5/16"7.938 2 1/2"63.50 3"76.20 1/2"12.70 15/32"11.906 7/16"11.113 5/16"7.938 5/16"7.938 800 LBS362.874 kg .80 LBS0.363 kg
00358
Order
5/16"7.938 3"76.20 3 1/2"88.90 3/4"19.05 11/16"17.463 5/8"15.875 15/32"11.906 5/16"7.938 1550 LBS703.068 kg 1.30 LBS0.59 kg
00358-SS (Stainless)
Order
5/16"7.938 3"76.20 3 1/2"88.90 3/4"19.05 11/16"17.463 5/8"15.875 15/32"11.906 5/16"7.938 1550 LBS703.068 kg 1.30 LBS0.59 kg

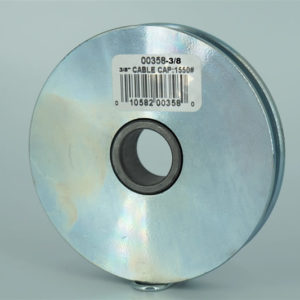

00358-3/8
Order
3/8"9.525 3"76.20 3 1/2"88.90 3/4"19.05 11/16"17.463 5/8"15.875 15/32"11.906 3/8"9.525 1550 LBS703.068 kg 1.30 LBS0.59 kg
00358-3/8-SS (Stainless)
Order
3/8"9.525 3"76.20 3 1/2"88.90 3/4"19.05 11/16"17.463 5/8"15.875 15/32"11.906 3/8"9.525 1550 LBS703.068 kg 1.30 LBS0.59 kg
00408
Order
3/8"9.525 3 1/4"82.55 4"101.60 3/4"19.05 11/16"17.463 5/8"15.875 15/32"11.906 3/8"9.525 1700 LBS771.107 kg 1.80 LBS0.816 kg
00408-SS (Stainless)
Order
3/8"9.525 3 1/4"82.55 4"101.60 3/4"19.05 11/16"17.463 5/8"15.875 15/32"11.906 3/8"9.525 1700 LBS771.107 kg 1.80 LBS0.816 kg
00508
Order
3/8"9.525 4 1/4"107.95 5"127.0 3/4"19.05 11/16"17.463 5/8"15.875 15/32"11.906 3/8"9.525 1850 LBS839.146 kg 2.90 LBS1.315 kg
00508-SS (Stainless)
Order
3/8"9.525 4 1/4"107.95 5"127.0 3/4"19.05 11/16"17.463 5/8"15.875 15/32"11.906 3/8"9.525 1850 LBS839.146 kg 2.90 LBS1.315 kg


.
