FIXED EYE - SINGLE SHEAVE

Choose the size of the Fixed Eye pulley block with Single Sheave and the type of finish, either galvenized zinc or stainless steel ("Stainless"), then click "Order".  The ordering page offers the following additional options available for purchase:

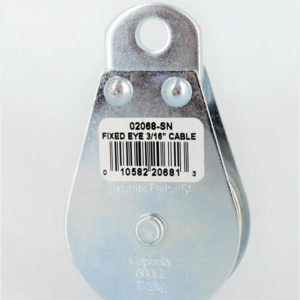

- Add Snatch Pin
- Change Fasteners

For Deadman Fixed Eye pulley blocks, click hereReplacement sheaves are also available. To view product application photos, click here.  Questions? Call or send us an email.

SPECIFICATIONS CHART

Model No. Max
Cable
A B C D E F G H O Y Working
Load
Weight
Each
01568
Order
3/16"5 mm 1"25 mm 1-1/2"38 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 2-7/16"62 mm 3-1/4"83 mm 1-5/8"41 mm 5/8"15.88 mm 525 LBS238 kg 0.50 LBS0.23 kg
01568-SS (Stainless)
Order
3/16"5 mm 1"25 mm 1-1/2"38 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 2-7/16"62 mm 3-1/4"83 mm 1-5/8"41 mm 5/8"15.88 mm 525 LBS238 kg 0.50 LBS0.23 kg

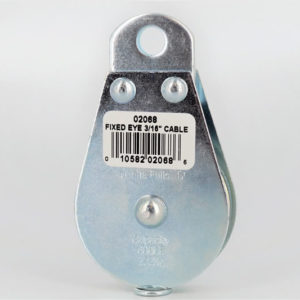

02068
Order
3/16"5 mm 1-1/2"38 mm 2"51 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 2-15/16"75 mm 3-3/4"95 mm 2-1/8"54 mm 5/8"15.88 mm 600 LBS272 kg 0.70 LB0.32 kg
02068-SS (Stainless)
Order
3/16"5 mm 1-1/2"38 mm 2"51 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 2-15/16"75 mm 3-3/4"95 mm 2-1/8"54 mm 5/8"15.88 mm 600 LBS272 kg 0.70 LB0.32 kg
02568
Order
1/4"6 mm 2"51 mm 2-1/2"64 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 3-7/16"87 mm 4-1/4"108 mm 2-5/8"67 mm 5/8"15.88 mm 685 LBS311 kg 1.00 LB0.45 kg
02568-SS (Stainless)
Order
1/4"6 mm 2"51 mm 2-1/2"64 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 3-7/16"87 mm 4-1/4"108 mm 2-5/8"67 mm 5/8"15.88 mm 685 LBS311 kg 1.00 LB0.45 kg
02568-1/8
Order
1/8"3 mm 2-1/4"57 mm 2-1/2"64 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 3-7/16"87 mm 4-1/4"108 mm 2-5/8"67 mm 5/8"15.88 mm 685 LBS310.72 kg 1.00 LB0.45 kg
02568-1/8-SS (Stainless)
Order
1/8"3 mm 2-1/4"57 mm 2-1/2"64 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 3-7/16"87 mm 4-1/4"108 mm 2-5/8"67 mm 5/8"15.88 mm 685 LBS310.72 kg 1.00 LB0.45 kg
03068
Order
1/4"6 mm 2-1/2"64 mm 3"76 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 4-1/16"103 mm 4-13/16"122 mm 3-1/8"79 mm 5/8"15.88 mm 800 LBS363 kg 1.40 LBS0.64 kg
03068-SS (Stainless)
Order
1/4"6 mm 2-1/2"64 mm 3"76 mm 7/16"11 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 4-1/16"103 mm 4-13/16"122 mm 3-1/8"79 mm 5/8"15.88 mm 800 LBS363 kg 1.40 LBS0.64 kg
03068-5/16
Order
5/16"8 mm 2-1/2"64 mm 3"76 mm 7/16"110 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 4-1/16"103 mm 4-13/16"122 mm 3-1/8"79 mm 5/8"15.88 mm 800 LBS363 kg 1.40 LBS0.64 kg
03068-5/16-SS (Stainless)
Order
5/16"8 mm 2-1/2"64 mm 3"76 mm 7/16"110 mm 1/4"6 mm 1-1/8"29 mm 3/8"10 mm 4-1/16"103 mm 4-13/16"122 mm 3-1/8"79 mm 5/8"15.88 mm 800 LBS363 kg 1.40 LBS0.64 kg
03568
Order
5/16"8 mm 3"76 mm 3-1/2"89 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 5-3/8"137 mm 6-1/2"165 mm 3-3/4"95 mm 15/16"23.813 mm 1550 LBS703 kg 3.1 LBS1.41 kg
03568-SS (Stainless)
Order
5/16"8 mm 3"76 mm 3-1/2"89 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 5-3/8"137 mm 6-1/2"165 mm 3-3/4"95 mm 15/16"23.813 mm 1550 LBS703 kg 3.1 LBS1.41 kg
03568-1/4
Order
1/4"6.35mm 3"76 mm 3-1/2"89 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 5-3/8"137 mm 6-1/2"165 mm 3-3/4"95 mm 15/16"23.813 mm 1550 LBS703 kg 3.1 LBS1.41 kg
03568-3/8
Order
3/8"10 mm 3"76 mm 3-1/2"89 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 5-3/8"137 mm 6-1/2"165 mm 3-3/4"95 mm 15/16"23.813 mm 1550 LBS703 kg 3.1 LBS1.41 kg
03568-3/8-SS (Stainless)
Order
3/8"10 mm 3"76 mm 3-1/2"89 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 5-3/8"137 mm 6-1/2"165 mm 3-3/4"95 mm 15/16"23.813 mm 1550 LBS703 kg 3.1 LBS1.41 kg
04068
Order
3/8"10 mm 3-1/4"83 mm 4"102 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 6"152 mm 7-1/4"184 mm 4-1/4"108 mm 15/16"23.813 mm 1700 LBS771 kg 3.5 LBS1.59 kg
04068-SS (Stainless)
Order
3/8"10 mm 3-1/4"83 mm 4"102 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 6"152 mm 7-1/4"184 mm 4-1/4"108 mm 15/16"23.813 mm 1700 LBS771 kg 3.5 LBS1.59 kg
05068
Order
3/8"10 mm 4-1/4"108 mm 5"127 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 7"178 mm 8-1/4"210 mm 5-1/4"133 mm 15/16"23.813 mm 1850 LBS839 kg 5.1 LBS2.31 kg
05068-SS (Stainless)
Order
3/8"10 mm 4-1/4"108 mm 5"127 mm 5/8"16 mm 5/16"8 mm 1-1/2"38 mm 9/16"14 mm 7"178 mm 8-1/4"210 mm 5-1/4"133 mm 15/16"23.813 mm 1850 LBS839 kg 5.1 LBS2.31 kg


.
