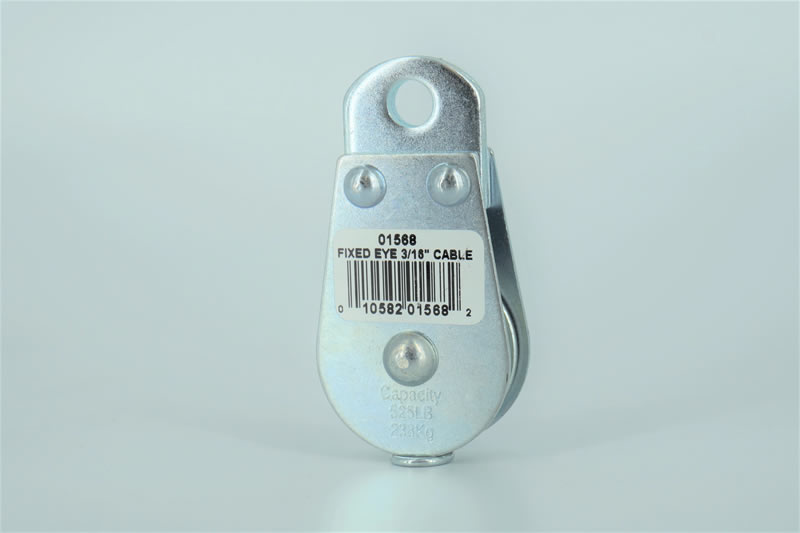

01568 - 1-1/2″ Fixed Eye Pulley Block; 1 Sheave

Max Cable3/16"
Working Load525 LBS
A1"
B1-1/2"
C7/16"
D1/4"
E1-1/8"
F3/8"
G2-7/16"
H3-1/4"
O1-5/8"
Y5/8"
Weight Each0.50 LBS

Description

1.5″ Fixed eye pulley block, industrial quality, forged eye, 7/16 wide machined sheave with oil impregnated bushing grooved for 3/16 wire rope. Clear galvenized zinc finish; safe work load of 525 lbs; weight 0.50 lbs.

Options include: change the center rivet to be a removable pin/snatch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).
Dimensions in inches are approximate.
