Home :: FLAT MOUNT PULLEYS :: FLAT MOUNT - DOUBLE Sheave :: 05058-2-SS (Stainless)

FLAT MOUNT - DOUBLE Sheave > 05058-2-SS (Stainless)

05058-2-SS (Stainless)
Description

5" Flat mount pulley block, industrial quality, double 5/8 inch machined sheave; oil impregnated bushing grooved for 3/8" wire ropes.  Stainless steel finish; safe work load of 1850 lbs; weight 8.05 lbs. The mounting hole size is 3/16".
Options include:  change the center rivet to be a removable snatch/pin;  change the fastener located in the center of the pulley from a rivet to a bolt.

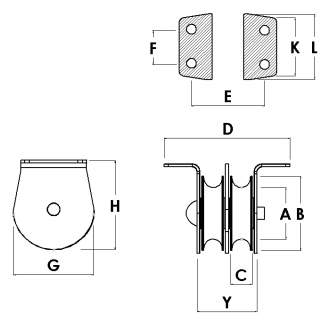

Dimensions in inches are approximate.

Details
Max Cable
3/8"
A
4-1/4"
B
5"
C
5/8"
D
4-1/2"
E
3-1/2"
F
1"
G
5-1/4"
H
5-15/16"
K
1-1/2"
L
2-3/4"
Y
1-13/16"
Working Load
1850 LBS
Options
Add Snatch Pin (SN)
Install 1 Bolt in Center (Replace Center Rivet with a Bolt) (F1)
Price
Our Price: $ 181.50
Purchase
Qty
Share
